Accessories

EIA-485 / RS-232 Adapter (RSC-1)

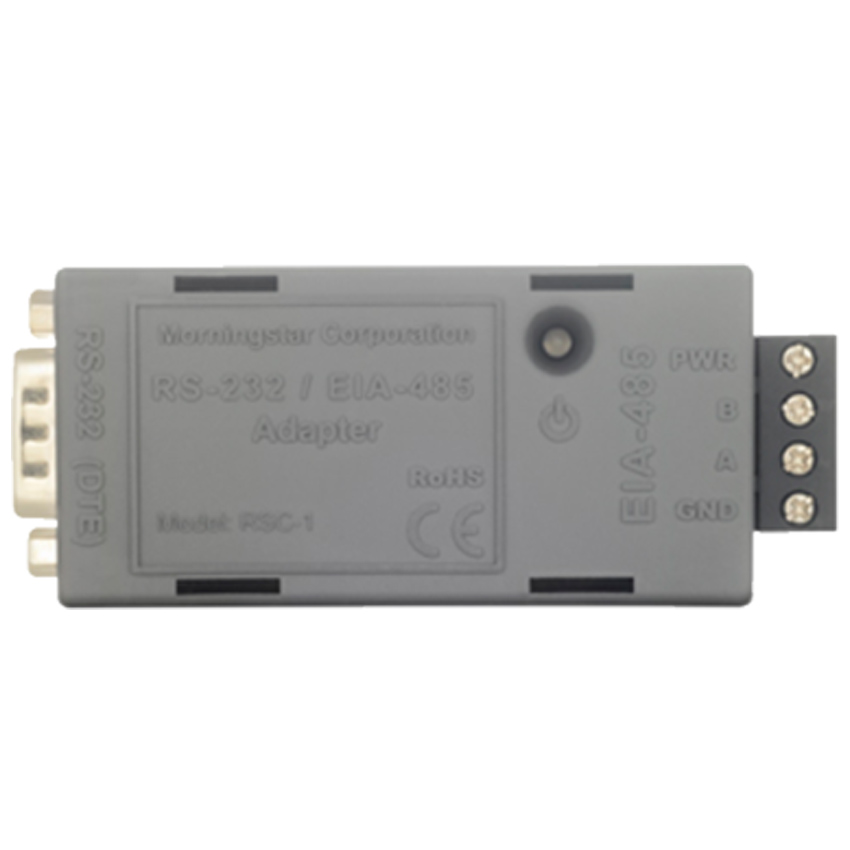

EIA-485 / RS-232 Adapter (RSC-1)
Characteristic:

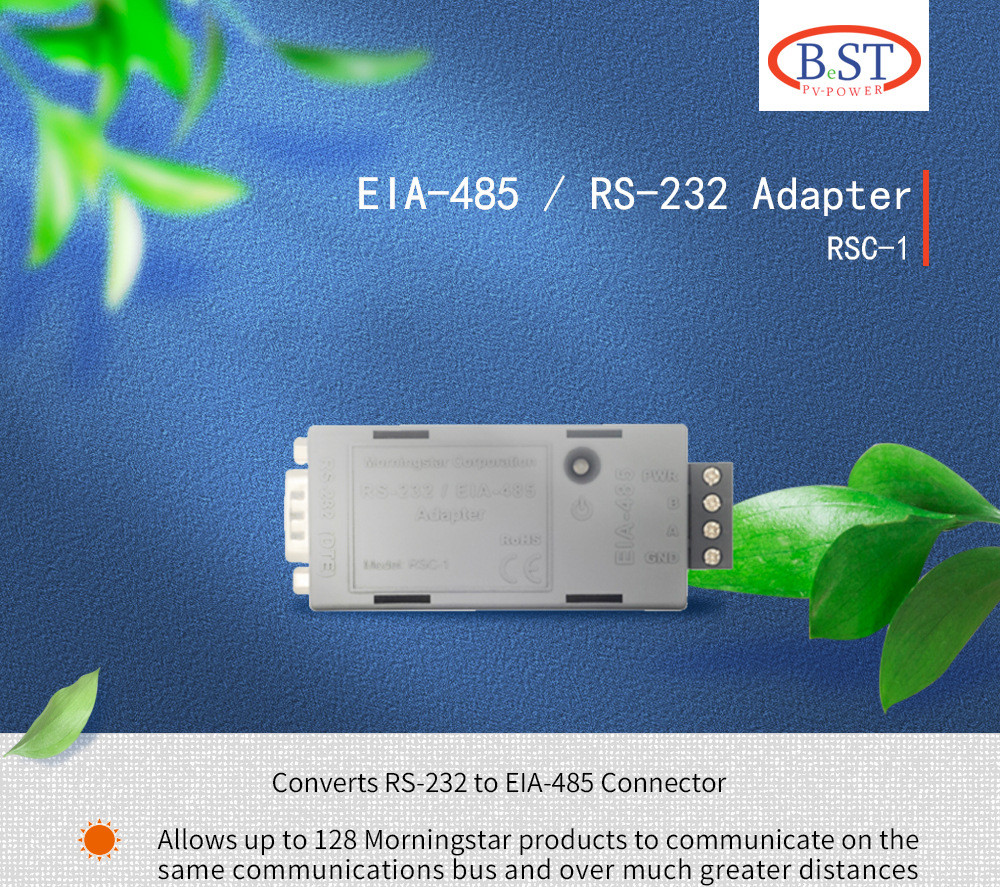

•Converts RS-232 to EIA-485 Connector.
•Allows up to 128 Morningstar products to communicate on the same communications bus and over much greater distances than with RS-232.
•All data is transmitted via MODBUS™ protocol.
•Removable four (4) position EIA-485 terminal.
•9-pin RS-232 connector (male).
•Status LED for monitoring and diagnostics.
•Molded tabs for attachment to 35mm standard DIN rail.
•RS-232 ribbon cable (not shown) with low-profile connectors.
Advantages:
•Networking several TriStar and/or TriStar MPPT controllers.
•Adding Morningstar PC Meterbus Adapters (MSC) for use with an RJ-11 port in multi-device networks.
•Adding Morningstar's Relay Driver (RD-1) to a network.
•Integrating any compatible Morningstar product into an existing EIA-485 network, such as those used by industrial control or SCADA systems Compatible with: TriStar MPPT™、SunSaver MPPT™、TriStar™、SunSaver Duo™ and SureSine™.

Product Introduction



Help Documentation

Technical datasheet

RSC-1（Click to download）

After-sale service

Intl-Warranty（Click to download）
